Longspan Shelving

Long-span Shelving

Our HD Long Span frames have a bay load of up to 1200kg.

Available in 3 x height sizes 2000mm, 2400mm, 3000mm.

The most common depth is 460mm,600mm,900mm & 1200mm deep frames are available.

Call one us today to discuss your requirments.

Long-Span With Board

EM # DESCRIPTION COLOUR WEIGHT QTY/PACK UNIT PACKING TYPE UNIT PRICE (EXCL GST) LENGTH
WIDTH
HEIGHT
FITTED
WITH
MPR MPR LONGSPAN GREY 86KG 1 Each SKID $320 2000MM H
X 1800MM
L X 600MM
DEEP
BOARD
MPR MPR LONGSPAN / EXTENSION BAY GREY 70KG 1 Each SKID $280 2000MM H
X 1800MM
L X 600MM
DEEP
BOARD
MPR MPR LONGSPAN EXTRA SHELF GREY 20KG 1 Each SKID $65 1800MM X
600MM
BOARD

Long-Span With Gal Panels

EM # DESCRIPTION COLOUR WEIGHT QTY/PACK UNIT PACKING TYPE UNIT PRICE (EXCL GST) LENGTH
WIDTH
HEIGHT
FITTED
WITH
MPR MPR LONGSPAN GREY 86KG 1 Each SKID $390 2000MM H
X 1800MM
L X 600MM
DEEP
GAL PANELS
MPR MPR LONGSPAN / EXTENSION BAY GREY 70KG 1 Each SKID $350 2000MM H
X 1800MM
L X 600MM
DEEP
GAL PANELS
MPR MPR LONGSPAN / EXTENSION BAY GREY 20KG 1 Each SKID $80 1800MM X
600MM
GAL PANELS

Long-Span With Mesh Decks

EM # DESCRIPTION COLOUR WEIGHT QTY/PACK UNIT PACKING TYPE UNIT PRICE (EXCL GST) LENGTH
WIDTH
HEIGHT
FITTED
WITH
MPR MPR LONGSPAN GREY 86KG 1 Each SKID $370 2000MM H
X 1800MM
L X 600MM
DEEP
 MESH DECKS
MPR MPR LONGSPAN / EXTENSION BAY GREY 70KG 1 Each SKID $330 2000MM H
X 1800MM
L X 600MM
DEEP
 MESH DECKS
MPR MPR LONGSPAN / EXTENSION BAY GREY 70KG 1 Each SKID $75 1800MM X
600MM
MESH DECKS

THE BENEFITS OF  INSTALLING MPR LONGSPAN

FAST INSTALL TIMES.
LONGSPAN HAS A WEIGHT LOADING OF 400KGS PER SHELF UDL.
ALL FRAMES ARRIVE ASSEMBLED.
MORE COST EFFECTIVEAS YOU CAN JOIN ONTO EXISTING UNITS.
FOOT PLATE TO SECURE TO THE FLOOR FOR MAXIUM USAGE
COMPATABLE WITH WIRE MESH, MALEMINE, METAL & PARTICAL BOARD.

Beam lengths available: 900mm, 1200mm, 1500mm, 1800mm, 2100mm & 2400mm.

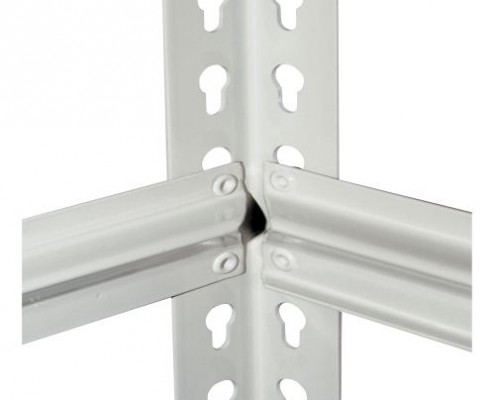

A beam profile 0f 60mm x 40mm ensures each shelf level has an industrial capacity of over 500 kg UDL.

Easy assembly with no screws or clips required,

Starter Bay & Add On Bay Examples

1800mm Starter Bay

Frames 2 x 2000mm x 600mm

Beams 8 x 1800mm

Boards 4 x 1800mm x 600mm

1800mm Add-on Bay

Frames 1 x 2000mm x 600mm

Beams 8 x 1800mm

Boards 4 x 1800mm x 600mm











Long-span Shelf Options

BOARD

GALVANISED PANELS

MESH DECKS
